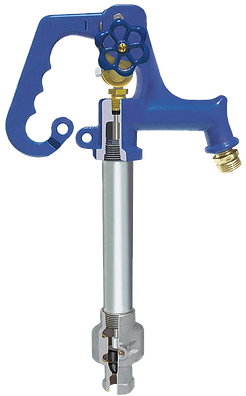

800LF Series Deluxe Frost-Proof Yard Hydrant
Certified Lead Free
Models 800LF – 818LF
Certified by Truesdail Laboratories. Meets all Federal Safe Drinking Water Acts and requirements.
Does not meet California Prop. 65 (Environmental Law)
• 3/4” or 1″ NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• All Simmons Yard Hydrants have Cast Iron head and handle with Blue Polyester Powder Coated Finish
• Flow Lock Wheel
• Plunger can be replaced without digging the hydrant up.
• Max Pressure 120 PSI
• Many parts and accessories are common for all models
| Part No. |
Inlet |
Bury Depth |
Weight (lbs.) |
| 800LF |
3/4″ |
1′ |
11.9 |
|
| 810LF |
1″ |
1′ |
11.9 |
|
| 801LF |
3/4″ |
1-1/2′ |
13.5 |
|
| 811LF |
1″ |
1-1/2′ |
13.5 |
|
| 802LF |
3/4″ |
2′ |
14.5 |
|
| 812LF |
1″ |
2′ |
14.5 |
|
| 803LF |
3/4″ |
3′ |
16.8 |
|
| 813LF |
1″ |
3′ |
16.8 |
|
| 804LF |
3/4″ |
4′ |
18.9 |
|
| 814LF |
1″ |
4′ |
18.9 |
|
| 805LF |
3/4″ |
5′ |
21.2 |
|
| 815LF |
1″ |
5′ |
21.2 |
|
| 806LF |
3/4″ |
6′ |
23.4 |
|
| 816LF |
1″ |
6′ |
23.4 |
|
| 807LF |
3/4″ |
7′ |
25.7 |
|
| 817LF |
1″ |
7′ |
25.7 |
|
| 808LF |
3/4″ |
8′ |
28.2 |
|
| 818LF |
1″ |
8′ |
28.2 |
